Motor Characteristics
| Parameter | Unit | C1718R231B-13120 | C1718R231B-0110 | C1718R231B-0129 |
|---|---|---|---|---|
| Voltage | V | 4.8 | 6.0 | 6.0 |
| No-load speed | rpm | 14200 | 8300 | 12700 |
| No-load current | mA | 130 | 50 | 120 |
| Stall torque | mNm | 4.90 | 4.30 | 7.35 |
| Stall current | mA | 1600 | 700 | 1900 |
| Load torque | mNm | 0.88 | 0.39 | 0.49 |
| Load speed | rpm | 11600 | 7580 | 11900 |
| Load current | mA | 400 | 110 | 230 |
| Max output power | W | 1.82 | 0.94 | 2.45 |
| Max efficiency | % | 57.5 | 55.5 | 54.8 |
| Torque constant | mNm/A | 3.33 | 6.62 | 4.13 |
| Speed/torque gradient | rpm/mNm | 2898 | 1930 | 1728 |
| Varistor | Yes/No | Yes | Yes | Yes |
| Weight | g | 12.8 | 12.8 | 13 |
| Operating temperature range | °C | -20~+80 | -20~+80 | -20~+80 |
Applications
small electronic products
portable electric tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

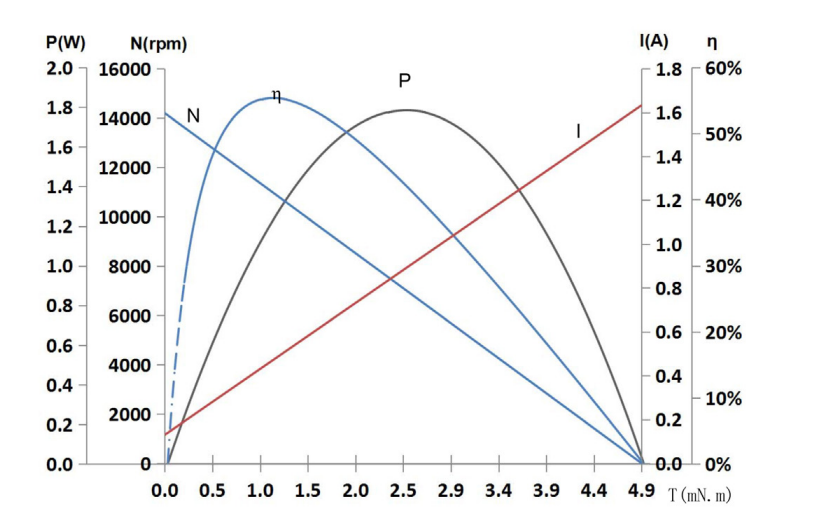

| Parameter | Unit | C1718R231B-13120 |
|---|---|---|
| Voltage | V | 4.8 |
| No-load speed | rpm | 14200 |
| No-load current | mA | 130 |
| Stall torque | mNm | 4.90 |
| Stall current | mA | 1600 |
| Load torque | mNm | 0.88 |
| Load speed | rpm | 11600 |
| Load current | mA | 400 |
| Max output power | W | 1.82 |
| Max efficiency | % | 57.5 |
| Torque constant | mNm/A | 3.33 |
| Speed/torque gradient | rpm/mNm | 2898 |
| Varistor | Yes/No | Yes |
| Weight | g | 12.8 |
| Operating temperature range | °C | -20~+80 |
Applications
small electronic products
portable electric tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | C1718R231B-0110 |
|---|---|---|
| Voltage | V | 6.0 |
| No-load speed | rpm | 8300 |
| No-load current | mA | 50 |
| Stall torque | mNm | 4.30 |
| Stall current | mA | 700 |
| Load torque | mNm | 0.39 |
| Load speed | rpm | 7580 |
| Load current | mA | 110 |
| Max output power | W | 0.94 |
| Max efficiency | % | 55.5 |
| Torque constant | mNm/A | 6.62 |
| Speed/torque gradient | rpm/mNm | 1930 |
| Varistor | Yes/No | Yes |
| Weight | g | 12.8 |
| Operating temperature range | °C | -20~+80 |
Applications
small electronic products
portable electric tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | C1718R231B-0129 |
|---|---|---|
| Voltage | V | 6.0 |
| No-load speed | rpm | 12700 |
| No-load current | mA | 120 |
| Stall torque | mNm | 7.35 |
| Stall current | mA | 1900 |
| Load torque | mNm | 0.49 |
| Load speed | rpm | 11900 |
| Load current | mA | 230 |
| Max output power | W | 2.45 |
| Max efficiency | % | 54.8 |
| Torque constant | mNm/A | 4.13 |
| Speed/torque gradient | rpm/mNm | 1728 |
| Varistor | Yes/No | Yes |
| Weight | g | 13 |
| Operating temperature range | °C | -20~+80 |
Applications
small electronic products
portable electric tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
