Description

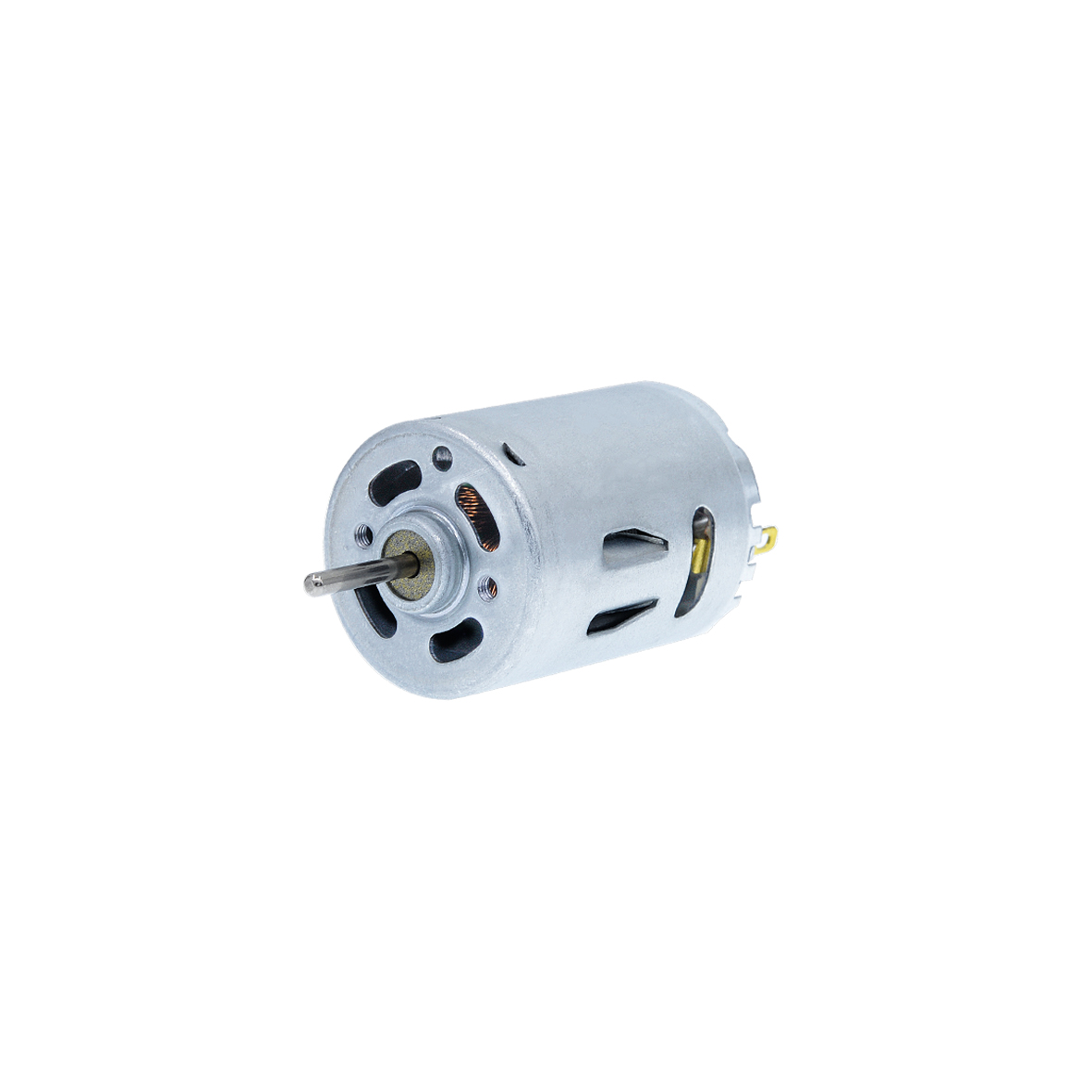

Graphite Brush
Graphite Brush
Specification | C2838R415415-0016 |
---|---|
Voltage | 13.0 V |
No-load speed | 6400 rpm |
No-load current | 90 mA |
Stall torque | 39.2 mNm |
Stall current | 2086 mA |
Load torque | 5.69 mNm |
Load speed | 5470 rpm |
Load current | 380 mA |
Max. output power | 6.57 W |
Max. efficiency | 66.5 % |
Torque constant | 19.64 mNm/A |
Speed/torque gradient | 163 rpm/mNm |
Varistor | NO Yes/No |
Weight | 70 g |
Operating temperature range | 0~+60 °C |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
