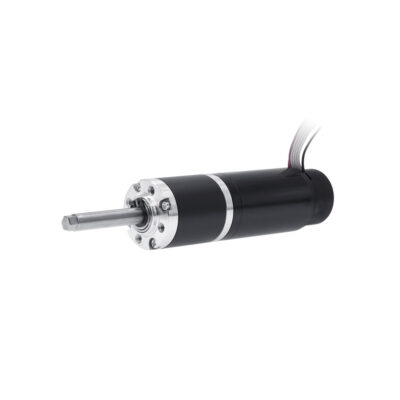

Name: 25**-26MP- KOCO automotive
SKU: 25**---26MP---

Motor Characteristics	25**—26MP—2543N9C2B01-65-48.0	25**—26MP—2554N9C2B04-82-24.0	25**—26MP—2543N9C2B03-65-24.0
Voltage	48.0 V	24.0 V	24.0 V
Terminal resistance	23.0 Ω	3.1 Ω	6.3 Ω
No-load speed	6500 rpm	8200 rpm	6500 rpm
No-load current	20 mA	35 mA	25 mA
Stall torque	144.6 mNm	214.4 mNm	132.6 mNm
Stall current	2090 mA	7740 mA	3810 mA
Nominal torque	42.60 mNm	32.4 mNm	37.6 mNm
Nominal speed	4580 rpm	6960 rpm	4600 rpm
Nominal current	630 mA	1200 mA	1100 mA
Max. output power	24.6 W	46.0 W	22.6 W
Max. efficiency	81 %	87 %	85 %
Back-EMF constant	7.3 mV/rpm	2.9 mV/rpm	3.7 mV/rpm
Torque constant	69.8 mNm/A	27.8 mNm/A	35.0 mNm/A
Speed/torque gradient	45 rpm/mNm	38 rpm/mNm	49 rpm/mNm
Rotor inertia	13.2 g·cm²	14.2 g·cm²	13.2 g·cm²
Weight	98 g	120 g	98 g

Gearbox characteristics

25**—26MP—

Gearbox stages

1

Reduction ratio

3.7~5.2

Max. rated torque

500

mNm

Max. momentary torque

750

mNm

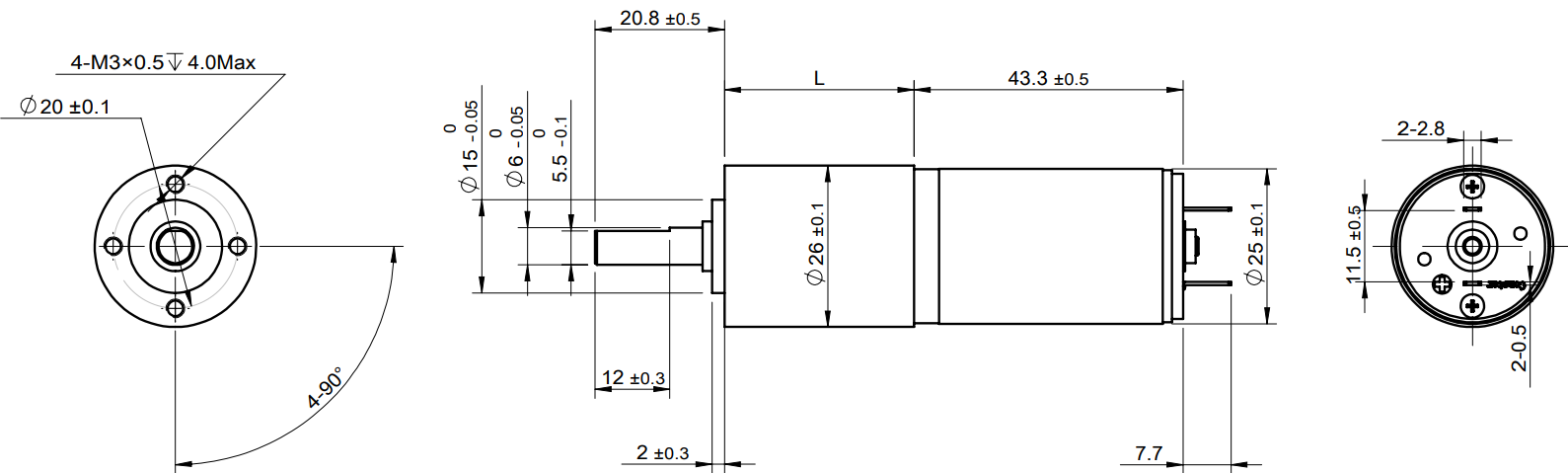

Length（L）

21.5

mm

Gearbox stages

2

Reduction ratio

13~27

Max. rated torque

750

mNm

Max. momentary torque

1100

mNm

Length（L）

30.5

mm

Gearbox stages

3

Reduction ratio

50~140

Max. rated torque

2000

mNm

Max. momentary torque

3000

mNm

Length（L）

39.5

mm

Gearbox stages

4

Reduction ratio

187~352

Max. rated torque

2500

mNm

Max. momentary torque

3750

mNm

Length（L）

48.5

mm

Options

lead wires length shaft length special coils

Anwendungen

25**—26MP—


Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocoautomotive.de

Specification	25**—26MP—2543N9C2B01-65-48.0
Voltage	48.0 V
Terminal resistance	23.0 Ω
No-load speed	6500 rpm
No-load current	20 mA
Stall torque	144.6 mNm
Stall current	2090 mA
Nominal torque	42.60 mNm
Nominal speed	4580 rpm
Nominal current	630 mA
Max. output power	24.6 W
Max. efficiency	81 %
Back-EMF constant	7.3 mV/rpm
Torque constant	69.8 mNm/A
Speed/torque gradient	45 rpm/mNm
Rotor inertia	13.2 g·cm²
Weight	98 g

Gearbox characteristics

25**—26MP—2543N9C2B01-65-48.0

Gearbox stages

1

Reduction ratio

3.7~5.2

Max. rated torque

500

mNm

Max. momentary torque

750

mNm

Length（L）

21.5

mm

Gearbox stages

2

Reduction ratio

13~27

Max. rated torque

750

mNm

Max. momentary torque

1100

mNm

Length（L）

30.5

mm

Gearbox stages

3

Reduction ratio

50~140

Max. rated torque

2000

mNm

Max. momentary torque

3000

mNm

Length（L）

39.5

mm

Gearbox stages

4

Reduction ratio

187~352

Max. rated torque

2500

mNm

Max. momentary torque

3750

mNm

Length（L）

48.5

mm
