Description
Precious Metal Commutation

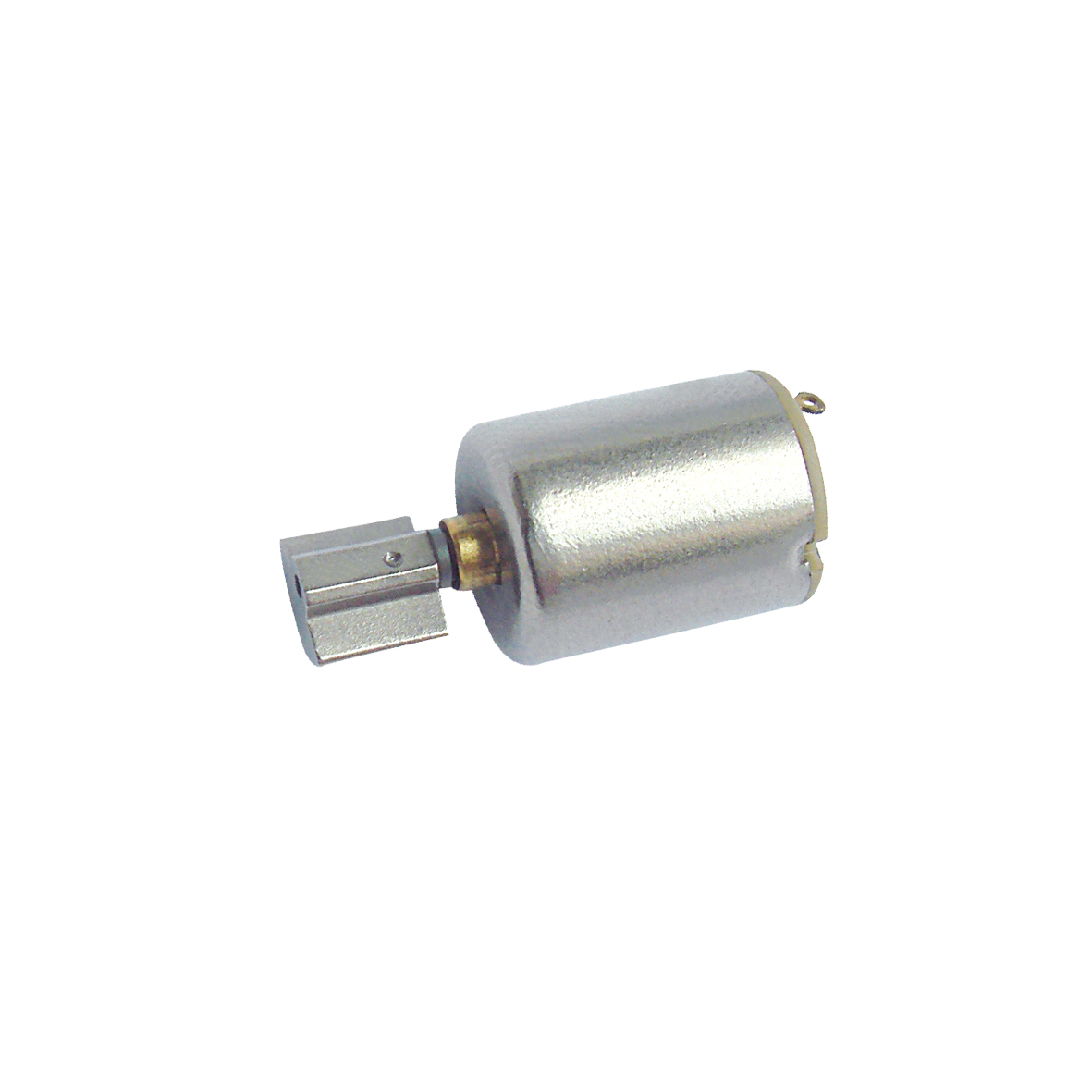

| Specification | VL1013N5M10-73-3.7 |
|---|---|
| Voltage | 3.7 V |
| Terminal resistance | 26.4 Ω |
| Speed | 7200 rpm |
| Current | 26 mA |
| Starting voltage | 0.8 V |
| Stall current | 140 mA |
| Weight | 7.8 g |
| Operating temperature range | -10～+65 °C |
Applications
health care products
wearable products
mobile phones
tablet PC´s
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
