Description
Precious Metal Commutation

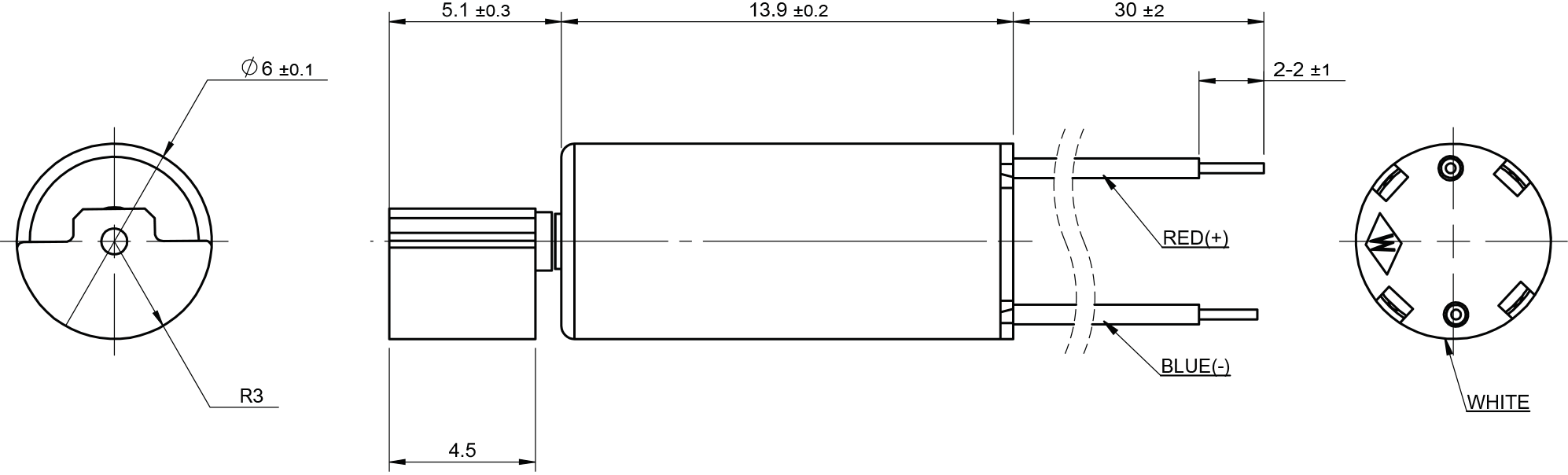

| Specification | VL0614N5M41-71-1.3 |
|---|---|
| Voltage | 1.3 V |
| Terminal resistance | 8.1 Ω |
| Speed | 7100 rpm |
| Current | 50 mA |
| Starting voltage | 0.6 V |
| Stall current | 170 mA |
| Weight | 2.8 g |
| Operating temperature range | -10～+65 °C |
Applications
wearable products
mobile phones
tablet PC´s
health care products
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
