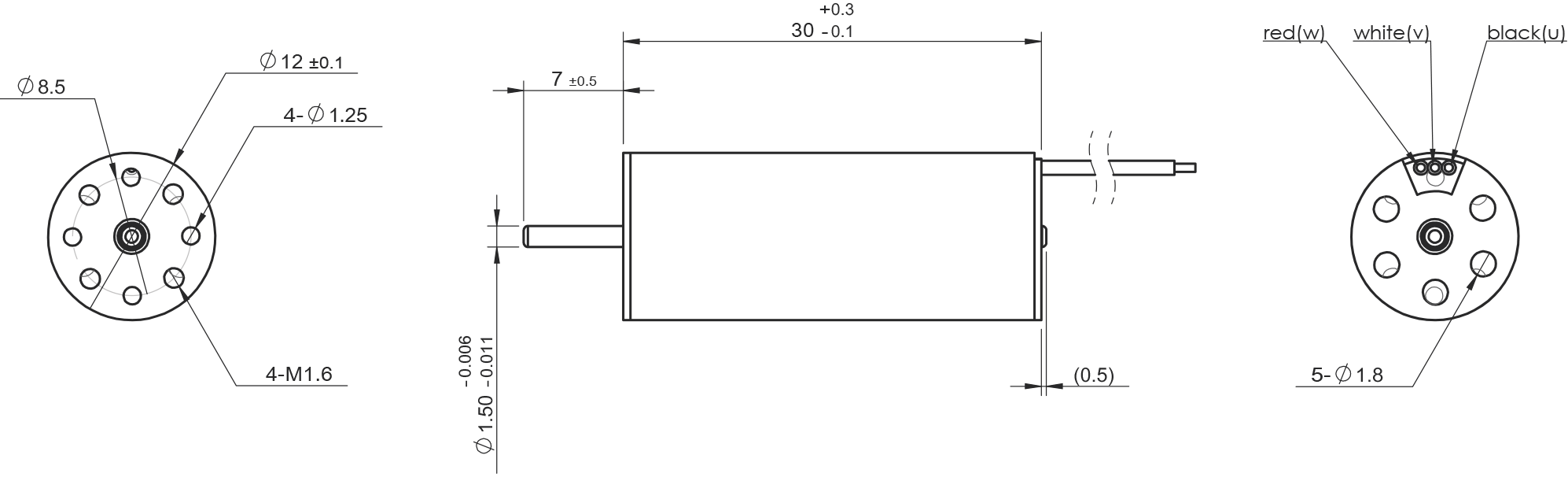

Parameter | Unit | B1230N2B28-115-12.0 | B1230N2B10-180-9.0 | B1230N2B15-180-3.7 |
---|---|---|---|---|
Voltage | V | 12.0 | 9.0 | 3.7 |
Terminal resistance | Ω | 9 | 2.4 | 0.6 |
No-load speed | rpm | 11500 | 18000 | 18000 |
No-load current | A | 0.05 | 0.15 | 0.23 |
Stall torque | mNm | 12.3 | 16.5 | 11.2 |
Stall current | A | 1.4 | 3.8 | 6.2 |
Nominal torque | mNm | 3.8 | 2.7 | 2.7 |
Nominal speed | rpm | 6800 | 14100 | 12200 |
Nominal current | A | 0.45 | 0.74 | 1.7 |
Max. output power | W | 3.7 | 7.8 | 5.9 |
Max. efficiency | % | 65 | 64 | 67 |
Back-EMF constant | mV/rpm | 1.0 | 0.5 | 0.2 |
Torque constant | mNm/A | 9.6 | 4.6 | 1.9 |
KV Value | rpm/V | 960 | 2000 | 4860 |
Speed/torque gradient | rpm/mNm | 930 | 1090 | 1430 |
Rotor inertia | gcm² | 0.21 | 0.21 | 0.21 |
Weight | g | 15 | 15 | 15 |
Thermal resistance housing-ambient | K/W | 24 | 24 | 24 |
Thermal resistance winding-housing | K/W | 4.5 | 4.5 | 4.5 |
Thermal time constant motor | s | 240 | 240 | 240 |
Thermal time constant winding | s | 2 | 2 | 2 |
Operating temperature range | °C | -40~+100 | -40~+100 | -40~+100 |
Thermal class of winding | °C | 155 | 155 | 155 |
Axial play | mm | 0.012 | 0.012 | 0.012 |
Radial play | mm | 0.008 | 0.008 | 0.008 |
Axial load dynamic | N | 1 | 1 | 1 |
Axial load static | N | 25 | 25 | 25 |
Radial load at 3 mm from mounting face | N | 6.3 | 6.3 | 6.3 |
No. of pole pairs | 1 | 1 | 1 | |
Bearings | 2 ball bearings | 2 ball bearings | 2 ball bearings | |
Protection class | IP | 30 | 30 | 30 |
Commutation | Sensorless | Sensorless | Sensorless |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Parameter | Unit | B1230N2B28-115-12.0 |
---|---|---|
Voltage | V | 12.0 |
Terminal resistance | Ω | 9 |
No-load speed | rpm | 11500 |
No-load current | A | 0.05 |
Stall torque | mNm | 12.3 |
Stall current | A | 1.4 |
Nominal torque | mNm | 3.8 |
Nominal speed | rpm | 6800 |
Nominal current | A | 0.45 |
Max. output power | W | 3.7 |
Max. efficiency | % | 65 |
Back-EMF constant | mV/rpm | 1.0 |
Torque constant | mNm/A | 9.6 |
KV Value | rpm/V | 960 |
Speed/torque gradient | rpm/mNm | 930 |
Rotor inertia | gcm² | 0.21 |
Weight | g | 15 |
Thermal resistance housing-ambient | K/W | 24 |
Thermal resistance winding-housing | K/W | 4.5 |
Thermal time constant motor | s | 240 |
Thermal time constant winding | s | 2 |
Operating temperature range | °C | -40~+100 |
Thermal class of winding | °C | 155 |
Axial play | mm | 0.012 |
Radial play | mm | 0.008 |
Axial load dynamic | N | 1 |
Axial load static | N | 25 |
Radial load at 3 mm from mounting face | N | 6.3 |
No. of pole pairs | 1 | |
Bearings | 2 ball bearings | |
Protection class | IP | 30 |
Commutation | Sensorless |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Parameter | Unit | B1230N2B10-180-9.0 |
---|---|---|
Voltage | V | 9.0 |
Terminal resistance | Ω | 2.4 |
No-load speed | rpm | 18000 |
No-load current | A | 0.15 |
Stall torque | mNm | 16.5 |
Stall current | A | 3.8 |
Nominal torque | mNm | 2.7 |
Nominal speed | rpm | 14100 |
Nominal current | A | 0.74 |
Max. output power | W | 7.8 |
Max. efficiency | % | 64 |
Back-EMF constant | mV/rpm | 0.5 |
Torque constant | mNm/A | 4.6 |
KV Value | rpm/V | 2000 |
Speed/torque gradient | rpm/mNm | 1090 |
Rotor inertia | gcm² | 0.21 |
Weight | g | 15 |
Thermal resistance housing-ambient | K/W | 24 |
Thermal resistance winding-housing | K/W | 4.5 |
Thermal time constant motor | s | 240 |
Thermal time constant winding | s | 2 |
Operating temperature range | °C | -40~+100 |
Thermal class of winding | °C | 155 |
Axial play | mm | 0.012 |
Radial play | mm | 0.008 |
Axial load dynamic | N | 1 |
Axial load static | N | 25 |
Radial load at 3 mm from mounting face | N | 6.3 |
No. of pole pairs | 1 | |
Bearings | 2 ball bearings | |
Protection class | IP | 30 |
Commutation | Sensorless |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Parameter | Unit | B1230N2B15-180-3.7 |
---|---|---|
Voltage | V | 3.7 |
Terminal resistance | Ω | 0.6 |
No-load speed | rpm | 18000 |
No-load current | A | 0.23 |
Stall torque | mNm | 11.2 |
Stall current | A | 6.2 |
Nominal torque | mNm | 2.7 |
Nominal speed | rpm | 12200 |
Nominal current | A | 1.7 |
Max. output power | W | 5.9 |
Max. efficiency | % | 67 |
Back-EMF constant | mV/rpm | 0.2 |
Torque constant | mNm/A | 1.9 |
KV Value | rpm/V | 4860 |
Speed/torque gradient | rpm/mNm | 1430 |
Rotor inertia | gcm² | 0.21 |
Weight | g | 15 |
Thermal resistance housing-ambient | K/W | 24 |
Thermal resistance winding-housing | K/W | 4.5 |
Thermal time constant motor | s | 240 |
Thermal time constant winding | s | 2 |
Operating temperature range | °C | -40~+100 |
Thermal class of winding | °C | 155 |
Axial play | mm | 0.012 |
Radial play | mm | 0.008 |
Axial load dynamic | N | 1 |
Axial load static | N | 25 |
Radial load at 3 mm from mounting face | N | 6.3 |
No. of pole pairs | 1 | |
Bearings | 2 ball bearings | |
Protection class | IP | 30 |
Commutation | Sensorless |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
