Description

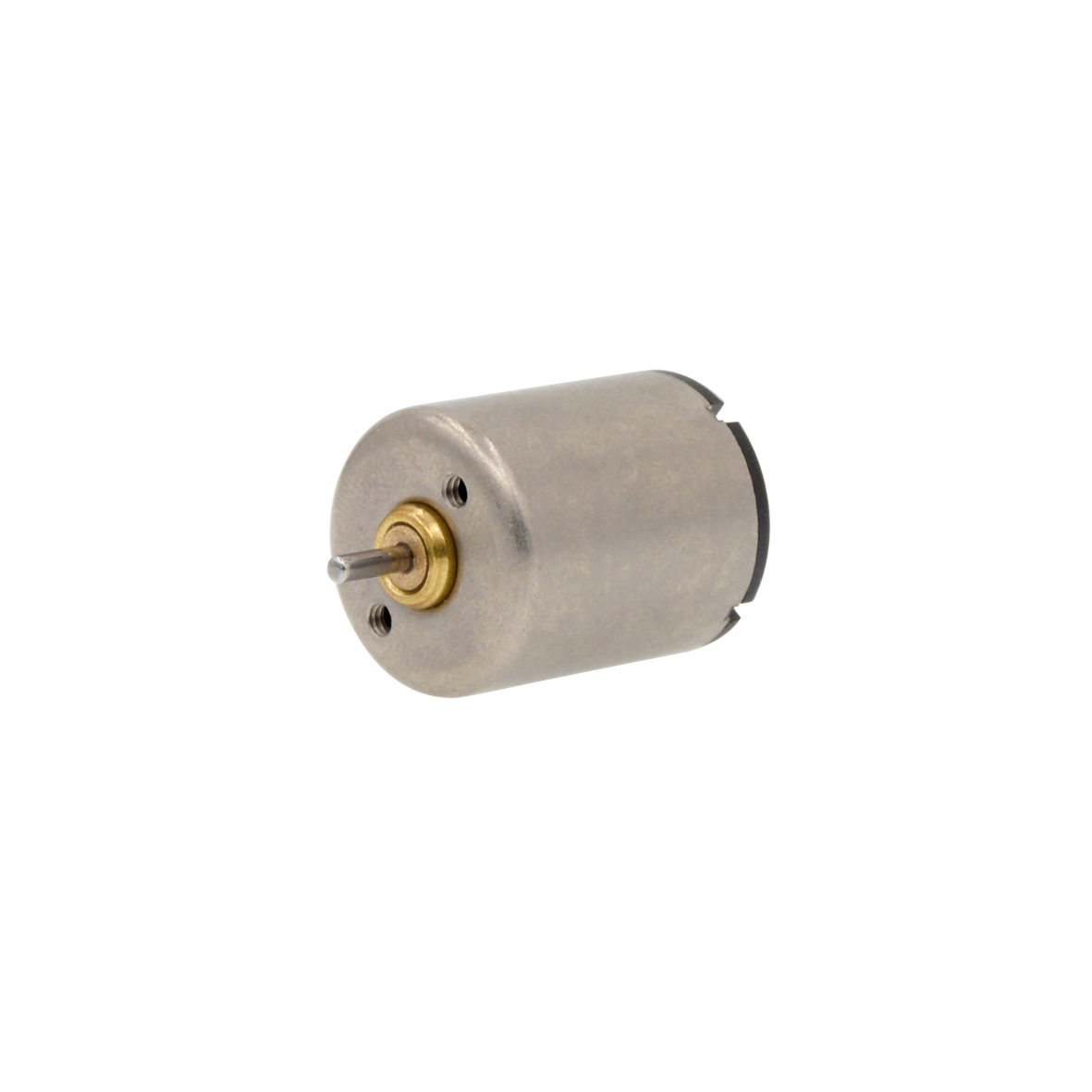

Precious Metal Commutation
| Specification | L1718N5M46-245-7.4 |
|---|---|
| Voltage | 7.4 V |
| Terminal resistance | 1.2 Ω |
| No-load speed | 24500 rpm |
| No-load current | 40 mA |
| Stall torque | 17.6 mNm |
| Stall current | 6170 mA |
| Load torque | 1.0 mNm |
| Load speed | 23110 rpm |
| Load current | 390 mA |
| Max. output power | 11.3 W |
| Max. efficiency | 85 % |
| Back-EMF constant | 0.3 mV/rpm |
| Torque constant | 2.9 mNm/A |
| Speed/torque gradient | 1390 rpm/mNm |
| Rotor inertia | 0.8 g·cm² |
| Weight | 18.5 g |
| Operating temperature range | -20~+85 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
