Description

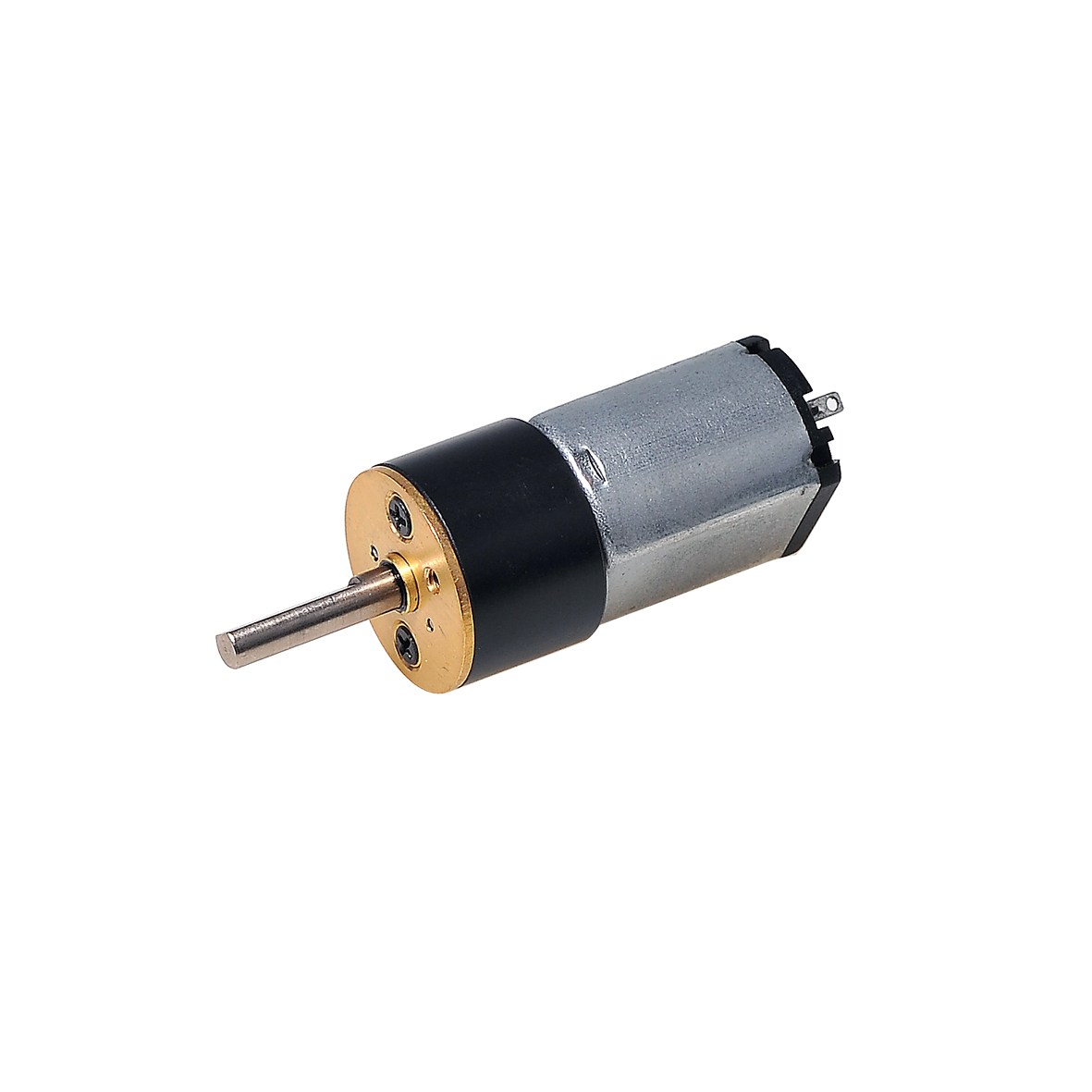

14mm 6V DC spur gearmotor
| Specification | C12**—14MS—C1215F33-0128 |
|---|---|
| Voltage | 6.0 V |
| Terminal resistance | 40.0 Ω |
| No-load speed | 8300 rmp |
| No-load current | 25 mA |
| Stall torque | 0.72 mNm |
| Stall current | 150 mA |
| Nominal torque | 0.35 mNm |
| Nominal speed | 4260 rpm |
| Nominal current | 90 mA |
| Max. output power | 0.16 W |
| Max. efficiency | 35 % |
| Back-EMF constant | 0.60 mV/rpm |
| Torque constant | 5.75 mNm/A |
| Speed/torque gradient | 11543 rpm/mNm |
| Rotor inertia | 0.3 g·cm² |
| Weight | 5.4 g |
