Description

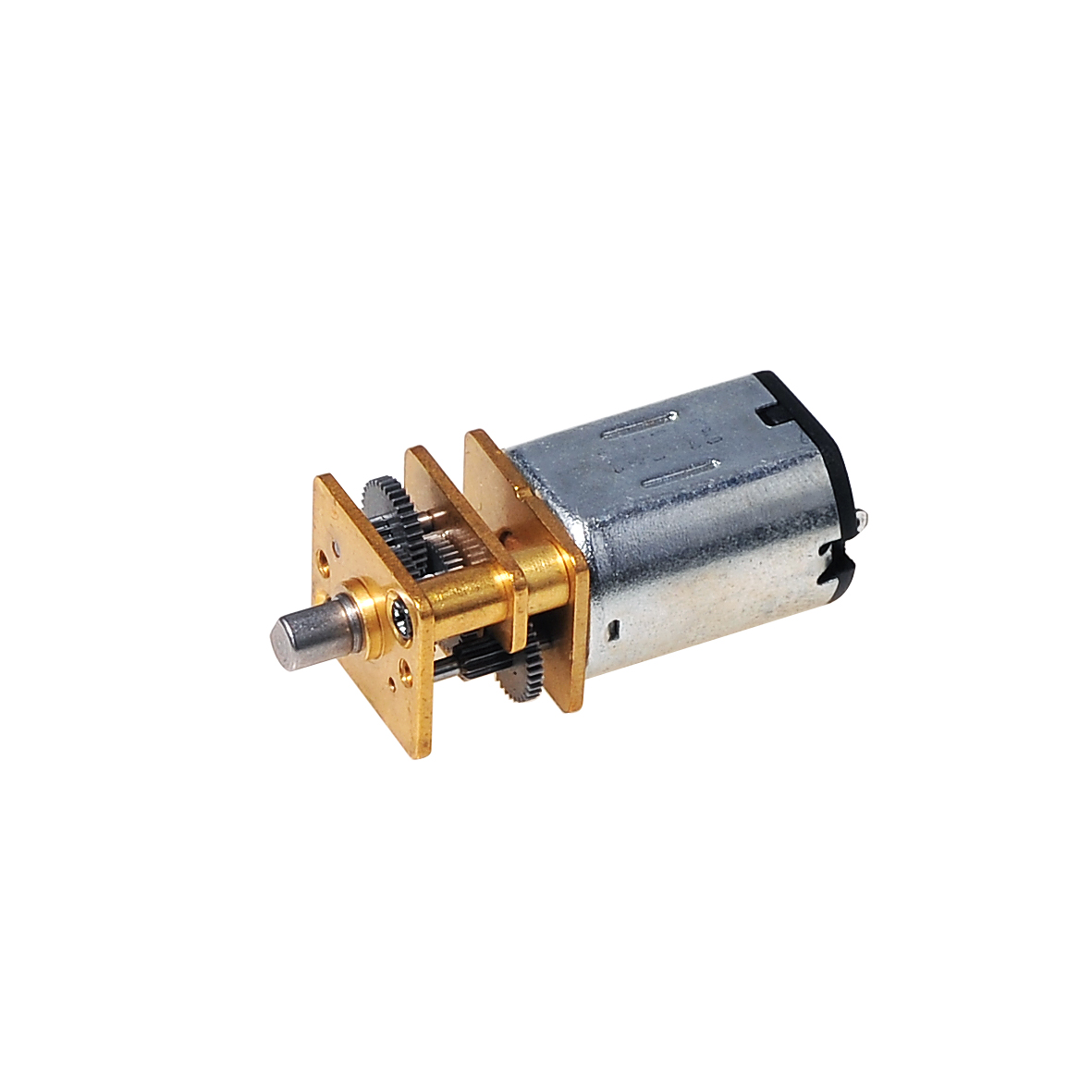

12mm 1.5V micro DC spur gearmotor
12mm 1.5V micro DC spur gearmotor

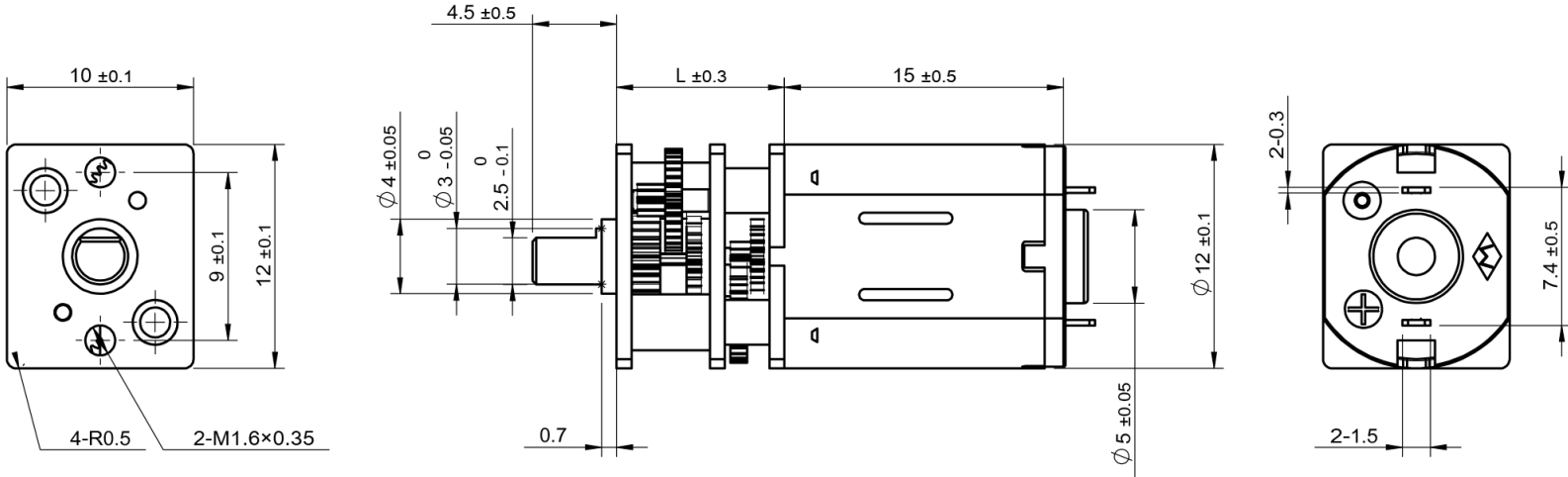

Specification | C12**—12MS—C1215F33-0128 |
---|---|
Voltage | 6.0 V |
Terminal resistance | 40.0 Ω |
No-load speed | 8300 rpm |
No-load current | 25 mA |
Stall torque | 0.72 mNm |
Stall current | 150 mA |
Nominal torque | 0.35 mNm |
Nominal speed | 4260 rpm |
Nominal current | 90 mA |
Max. output power | 0.16 W |
Max. efficiency | 35 % |
Back-EMF constant | 0.60 mV/rpm |
Torque constant | 5.75 mNm/A |
Speed/torque gradient | 11543 rpm/mNm |
Rotor inertia | 0.3 g·cm² |
Weight | 5.4 g |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
