Description

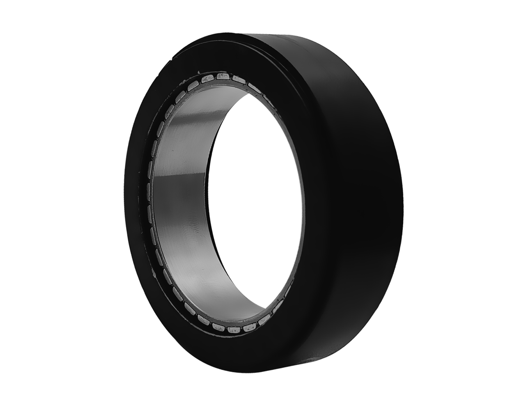

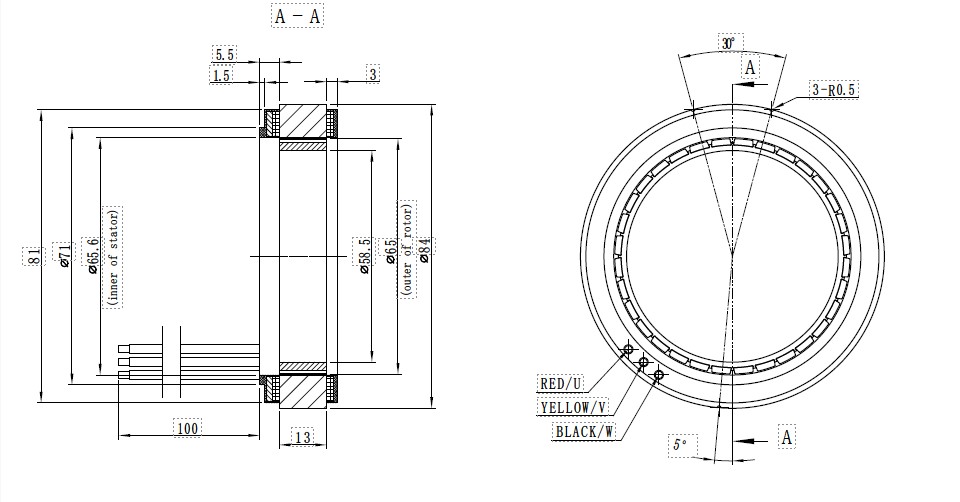

φ84mm*13mm Inner Rotor, Slotted, Sensorless
| Parameter | Unit | BS8413NFL-17-48.0 |
|---|---|---|
| Voltage | V | 48.0 |
| Line resistance | Ω | 1.1 |
| Line inductance | mH | 0.59 |
| No-load speed | rpm | 1730 |
| No-load current | A | 0.25 |
| Stall torque | N.m | 11.0 |
| Stall current | A | 43.6 |
| Nominal torque | N.m | 1.4 |
| Nominal speed | rmp | 1370 |
| Nominal current | A | 5.2 |
| Max. output power | W | 510 |
| Max. efficiency | % | 86 |
| Back-EMF constant | mV/rmp | 27.6 |
| Torque constant | Nm/A | 0.25 |
| KV Value | rpm/V | 36.0 |
| Speed/torque gradient | rpm/Nm | 157 |
| Operating temperature range | °C | -40~+100 |
| Thermal class of winding | °C | 180 |
| Insulation class | / | B |
| Thermal resistance winding-ambient | K/W | 1.9 |
| Thermal time constant winding | s | 120 |
| Weight | g | 255 |
| No. of pole pairs | / | 18 |
| No. of solts | / | 36 |
| Rotor inertia | gcm² | 535 |
| Commutation | Sensorless | |
| Circuit type | Y | |
| Puncture | 500VAC / 5mA / 1s | |
| Insulation Resistance | 100MΩ / 500VDC |
Applications
Robot
industrial automation fields
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
