Description

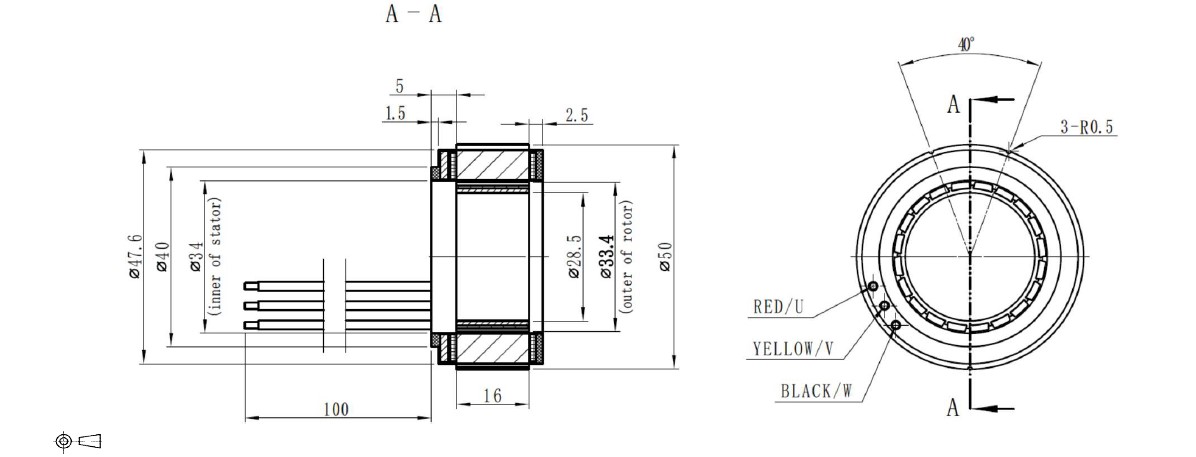

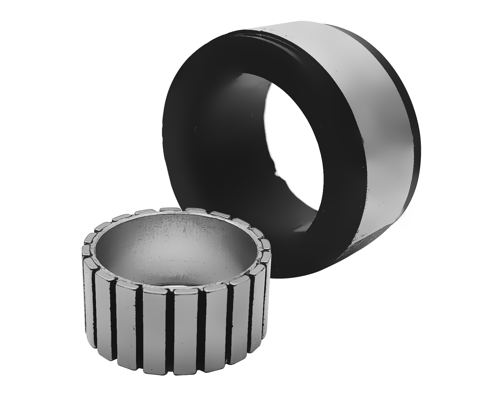

50mm Brushless Frameless Motor
| Parameter | Unit | BS5016NFL-29-48.0 |
|---|---|---|
| Voltage | V | 48.0 |
| Line resistance | Ω | 2.5 |
| Line inductance | mH | 1.3 |
| No-load speed | rpm | 2880 |
| No-load current | A | 0.15 |
| Stall torque | N.m | 3.0 |
| Stall current | A | 19.2 |
| Nominal torque | N.m | 0.5 |
| Nominal speed | rmp | 2125 |
| Nominal current | A | 3.1 |
| Max. output power | W | 223 |
| Max. efficiency | % | 86 |
| Back-EMF constant | mV/rmp | 16.5 |
| Torque constant | Nm/A | 0.15 |
| KV Value | rpm/V | 60 |
| Speed/torque gradient | rpm/Nm | 974 |
| Operating temperature range | °C | -40~+100 |
| Thermal class of winding | °C | 180 |
| Insulation class | / | B |
| Thermal resistance winding-ambient | K/W | 3.3 |
| Thermal time constant winding | s | 120 |
| Weight | g | 138 |
| No. of pole pairs | / | 10 |
| No. of solts | / | 18 |
| Rotor inertia | gcm² | 61 |
| Commutation | Sensorless | |
| Circuit type | Y | |
| Puncture | 500VAC / 5mA / 1s | |
| Insulation Resistance | 100MΩ / 500VDC |
Applications
Robot
industrial automation fields
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
