Description

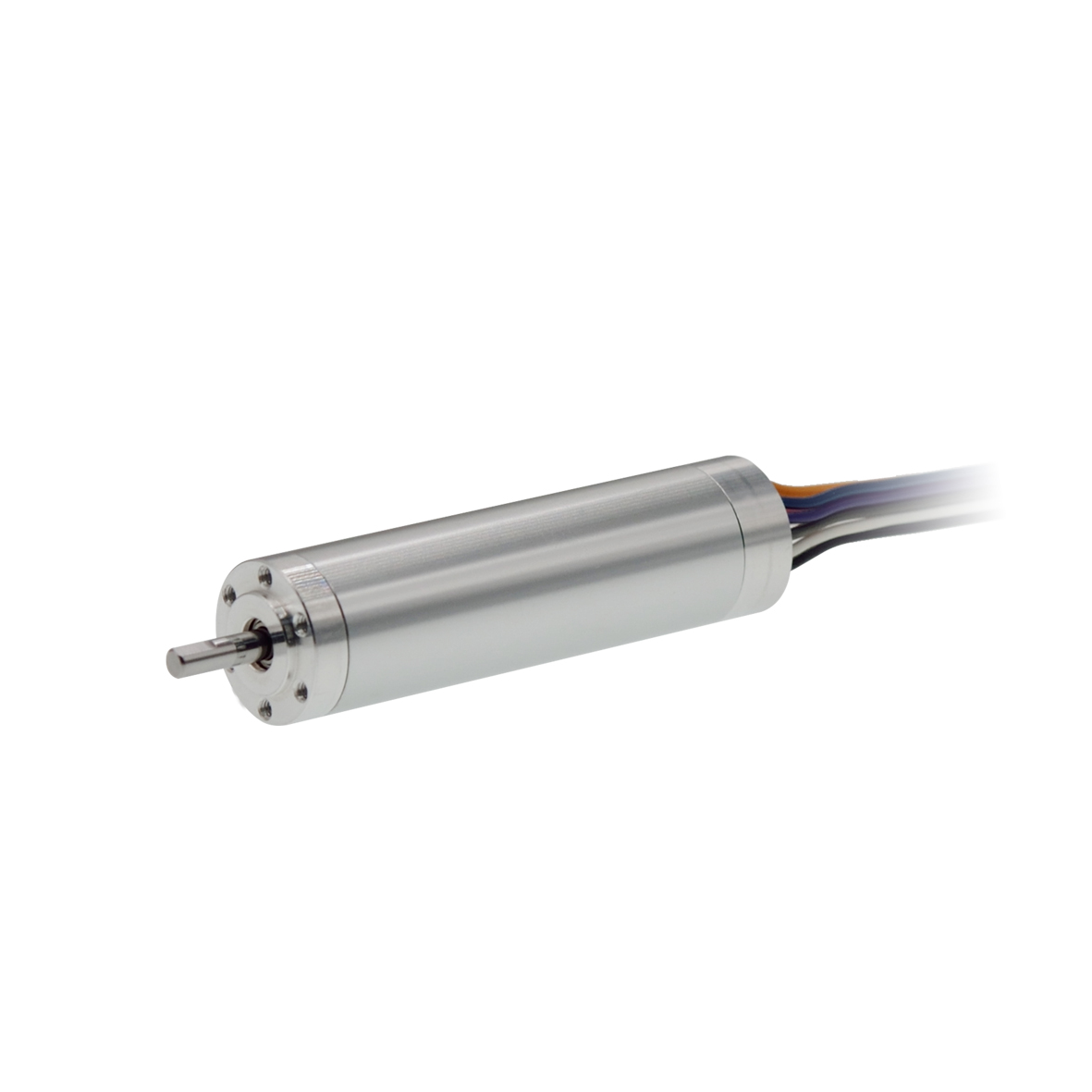

16mm BLDC, inner rotor, slotless, sensored, high efficiency
BH1659NH2B645-36.0-****
incl. 19% VAT
16mm BLDC, inner rotor, slotless, sensored, high efficiency
| Specification | BH1659NH2B645-36.0-**** |
|---|---|
| Voltage | 36.0 V |
| Terminal resistance | 0.66 Ω |
| No-load speed | 64500 rpm |
| No-load current | 0.19 A |
| Stall torque | 288.7 mNm |
| Stall current | 54.5 A |
| Nominal torque | 11.5 mNm |
| Nominal speed | 61930 rpm |
| Nominal current | 2.35 A |
| Max. output power | 488 W |
| Max. efficiency | 88.6 % |
| Back-EMF constant | 0.556 mV/rpm |
| Torque constant | 5.31 mNm/A |
| KV Value | 1790 rpm/V |
| Speed/torque gradient | 223 rpm/mNm |
| Rotor inertia | 0.65 g·cm² |
| Weight | 52.0 g |
| Thermal resistance housing-ambient | 15.3 K/W |
| Thermal resistance winding-housing | 18.7 K/W |
| Thermal time constant motor | 362 s |
| Thermal time constant winding | 233 s |
| Operating temperature range | -40~+120 °C |
| Thermal class of winding | 155 °C |
| Axial play | 0.012 mm |
| Radial play | 0.008 mm |
| Axial load dynamic | 1.5 N |
| Axial load static | 60 N |
| Radial load at 3 mm from mounting face | 10 N |
| No. of pole pairs | 1 |
| Bearings | 2 ball bearings |
| Commutation | Hall Sensor |
| Protection class | 20 IP |
Applications
industrial automation
medical equipment
robotics
electrical tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
