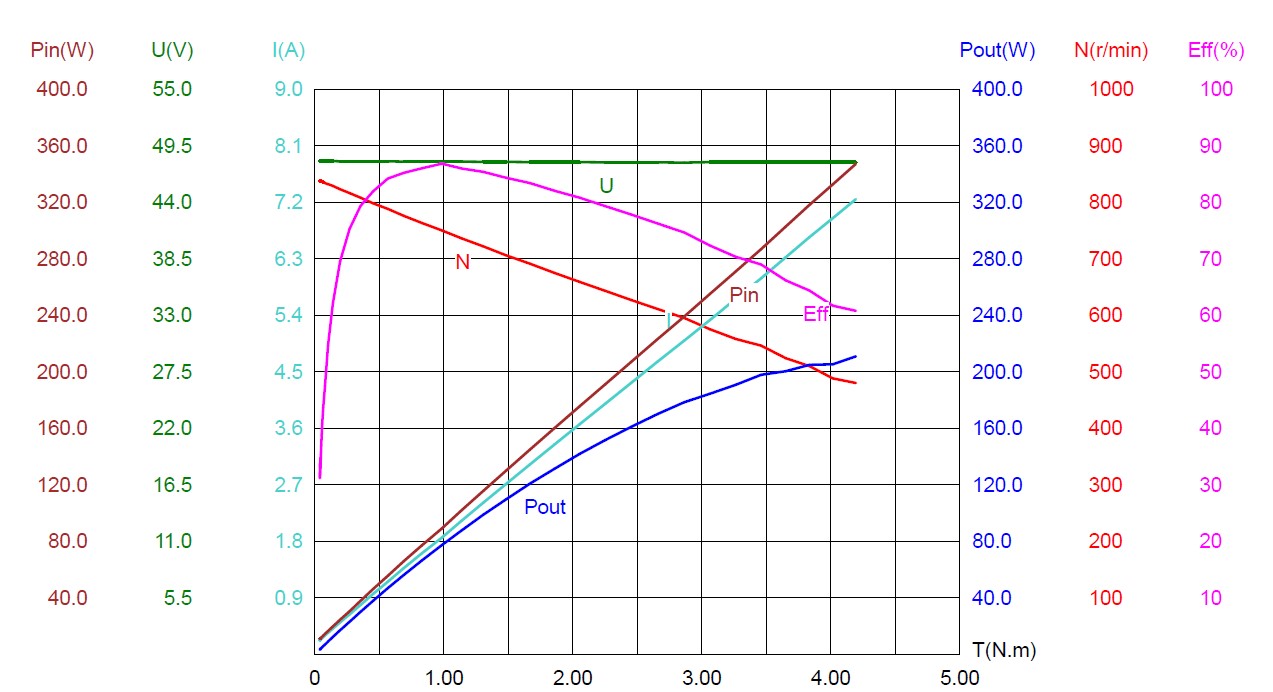

Motor Characteristics
| Parameter | Unit | BS10413NFL-9- 48.0 |
|---|---|---|
| Voltage | V | 48.0 |
| Line resistance | Ω | 1.8 |
| Line inductance | mH | 1.7 |
| No-load speed | rpm | 850 |
| No-load current | A | 0.2 |
| Stall torque | N.m | 14.5 |
| Stall current | A | 26.7 |
| Nominal torque | N.m | 2.30 |
| Nominal speed | rmp | 640 |
| Nominal current | A | 4.0 |
| Max. output power | W | 310 |
| Max. efficiency | % | 86 |
| Back-EMF constant | mV/rmp | 56.0 |
| Torque constant | Nm/A | 0.54 |
| KV Value | rpm/V | 17.7 |
| Speed/torque gradient | rpm/Nm | 59 |
| Operating temperature range | °C | -40~+100 |
| Thermal class of winding | °C | 180 |
| Insulation class | / | B |
| Thermal resistance winding-ambient | K/W | 2.3 |
| Thermal time constant winding | s | 120 |
| Weight | g | 405 |
| No. of pole pairs | / | 16 |
| No. of solts | / | 36 |
| Rotor inertia | gcm² | 1256 |
| Commutation | Sensorless | |
| Circuit type | Y | |
| Puncture | 500VAC / 5mA / 1s | |
| Insulation Resistance | 100MΩ / 500VDC |
Applications
Robot
industrial automation fields
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

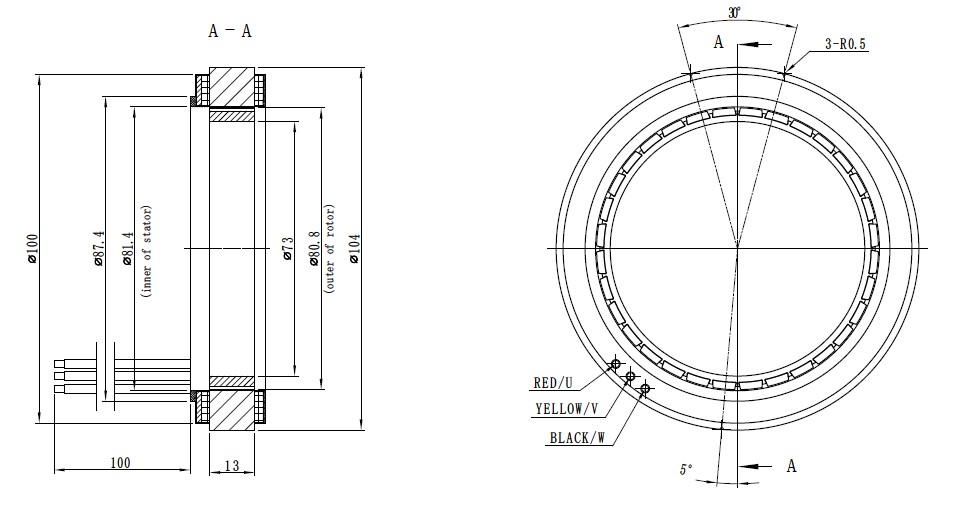

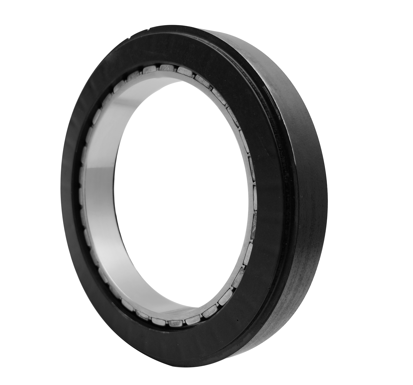

BS10413NFL
