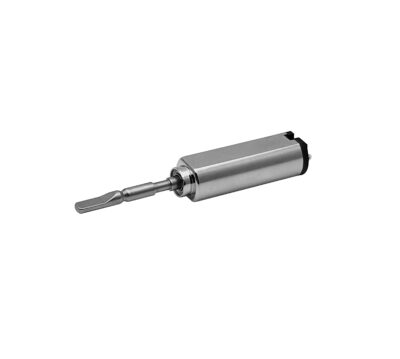

Motor Characteristics
| Parameter | Unit | 1339ZDF-1-L2-3.7 | 1339ZDF-1-L3-2.5 | 1339ZDF-1-L4-5.0 |
|---|---|---|---|---|
| Voltage | V | 3.7 | 2.5 | 5.0 |
| Resistance | Ω | 4 | 4 | 4 |
| Operating frequency range | Hz | 220~360 | 220~360 | 220~360 |
| No-load vibration frequency | Times / minute | 39600 | 39600 | 39600 |
| No-load current | mA | 90 | 75 | 110 |
| Starting torque | mNm | 11 | 8 | 15 |
| Starting current | A | 0.9 | 0.7 | 1.2 |
| Rated load (Brush head) | g | 3.8 | 3.8 | 3.8 |
| Load vibration frequency | Times / minute | 31200 | 31200 | 31200 |
| Load current | mA | 400 | 330 | 480 |
| Rotor inertia | g·cm² | 0.75 | 0.75 | 0.75 |
| Weight | g | 19 | 19 | 19 |
| Operating temperature range | °C | -10~+60 | -10~+60 | -10~+60 |
Applications
electric toothbrushes
health care products
cleaning equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 1339ZDF-1-L2-3.7 |
|---|---|---|
| Voltage | V | 3.7 |
| Resistance | Ω | 4 |
| Operating frequency range | Hz | 220~360 |
| No-load vibration frequency | Times / minute | 39600 |
| No-load current | mA | 90 |
| Starting torque | mNm | 11 |
| Starting current | A | 0.9 |
| Rated load (Brush head) | g | 3.8 |
| Load vibration frequency | Times / minute | 31200 |
| Load current | mA | 400 |
| Rotor inertia | g·cm² | 0.75 |
| Weight | g | 19 |
| Operating temperature range | °C | -10~+60 |
Applications
electric toothbrushes
health care products
cleaning equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 1339ZDF-1-L3-2.5 |
|---|---|---|
| Voltage | V | 2.5 |
| Resistance | Ω | 4 |
| Operating frequency range | Hz | 220~360 |
| No-load vibration frequency | Times / minute | 39600 |
| No-load current | mA | 75 |
| Starting torque | mNm | 8 |
| Starting current | A | 0.7 |
| Rated load (Brush head) | g | 3.8 |
| Load vibration frequency | Times / minute | 31200 |
| Load current | mA | 330 |
| Rotor inertia | g·cm² | 0.75 |
| Weight | g | 19 |
| Operating temperature range | °C | -10~+60 |
Applications
electric toothbrushes
health care products
cleaning equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 1339ZDF-1-L4-5.0 |
|---|---|---|
| Voltage | V | 5.0 |
| Resistance | Ω | 4 |
| Operating frequency range | Hz | 220~360 |
| No-load vibration frequency | Times / minute | 39600 |
| No-load current | mA | 110 |
| Starting torque | mNm | 15 |
| Starting current | A | 1.2 |
| Rated load (Brush head) | g | 3.8 |
| Load vibration frequency | Times / minute | 31200 |
| Load current | mA | 480 |
| Rotor inertia | g·cm² | 0.75 |
| Weight | g | 19 |
| Operating temperature range | °C | -10~+60 |
Applications
electric toothbrushes
health care products
cleaning equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
