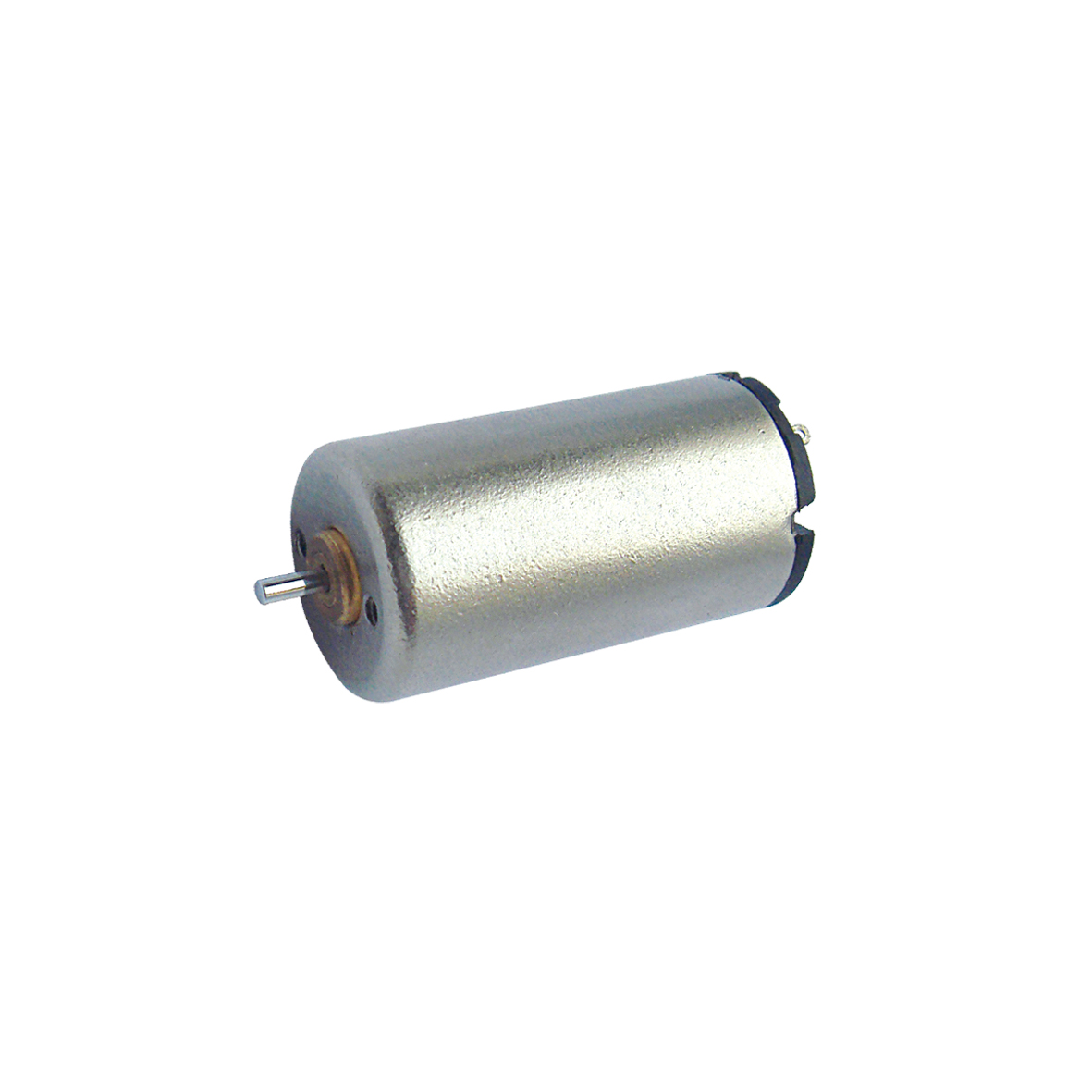

Description
Precious Metal Commutation

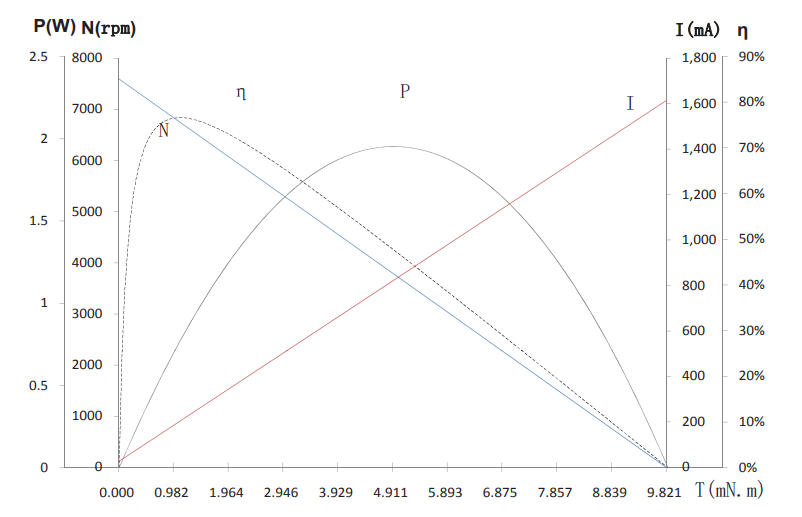

| Specification | L1630N5M11-76-5.0 |
|---|---|
| Voltage | 5.0 V |
| Terminal resistance | 3.1 Ω |
| No-load speed | 7700 rpm |
| No-load current | 25 mA |
| Stall torque | 9.8 mNm |
| Stall current | 1610 mA |
| Load torque | 0.5 mNm |
| Load speed | 7310 rpm |
| Load current | 110 mA |
| Max. output power | 2.0 W |
| Max. efficiency | 78 % |
| Back-EMF constant | 0.6 mV/rpm |
| Torque constant | 6.1 mNm/A |
| Speed/torque gradient | 780 rpm/mNm |
| Rotor inertia | 0.7 g·cm² |
| Weight | 25.2 g |
| Operating temperature range | -20~+85 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
