Description
Precious Metal Commutation

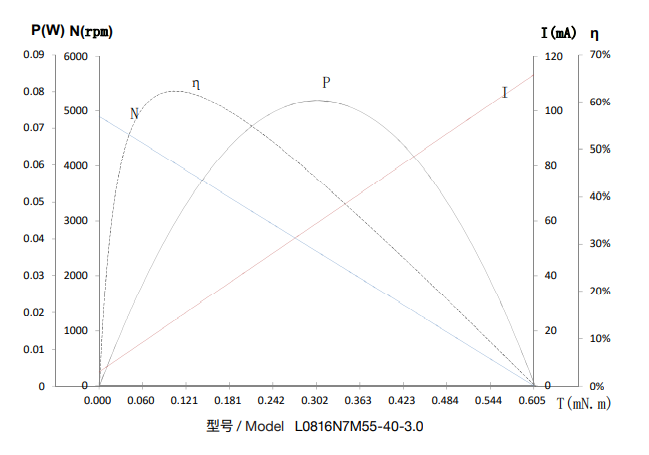

| Parameter | Unit | L0816N7M55-40-3.0 |
|---|---|---|
| Voltage | V | 3.0 |
| Terminal resistence | Ω | 26.5 |
| No-load speed | rpm | 4900 |
| No-load current | mA | 5 |
| Stall torque | mNm | 0.60 |
| Stall current | mA | 113 |
| Load torque | mNm | 0.30 |
| Load speed | rpm | 2450 |
| Load current | mA | 60 |
| Max. output power | W | 0.1 |
| Max. efficiency | % | 62.0 |
| Back-EMF constant | mV/rpm | 0.59 |
| Torque constant | mNm/A | 5.59 |
| Speed/torque gradient | rpm/mNm | 8167 |
| Rotor inertia | g·cm² | 0.01 |
| Weight | g | 3.7 |
| Operating temperature range | °C | -20~+80 |
Applications
mini UAV´s
remote control hobby products
small household appliances
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
