Description

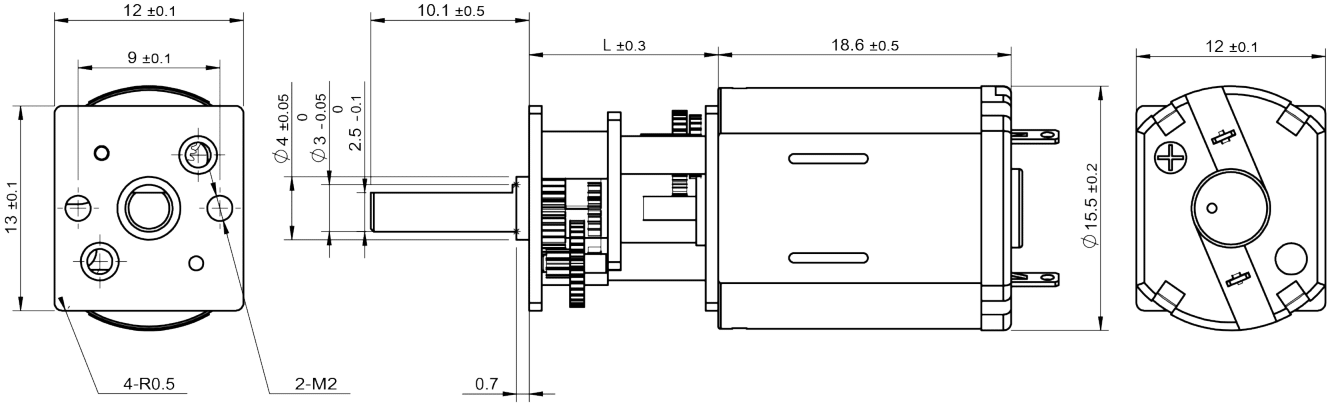

13mm 6V DC spur gear motor
| Specification | C16**—13MS—C1627F34AH-0055 |
|---|---|
| Voltage | 6.0 A |
| Terminal resistance | 8.8 Ω |
| No-load speed | 8600 rpm |
| No-load current | 55 mA |
| Stall torque | 3.75 mNm |
| Stall current | 652 mA |
| Nominal torque | 0.79 mNm |
| Nominal speed | 6800 rpm |
| Nominal current | 180 mA |
| Max. output power | 0.85 W |
| Max. efficiency | 51.9 % |
| Back-EMF constant | 0.64 mV/rpm |
| Torque constant | 6.28 mNm/A |
| Speed/torque gradient | 2293 rpm/mNm |
| Rotor inertia | 0.5 g·cm² |
| Weight | 16.7 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
