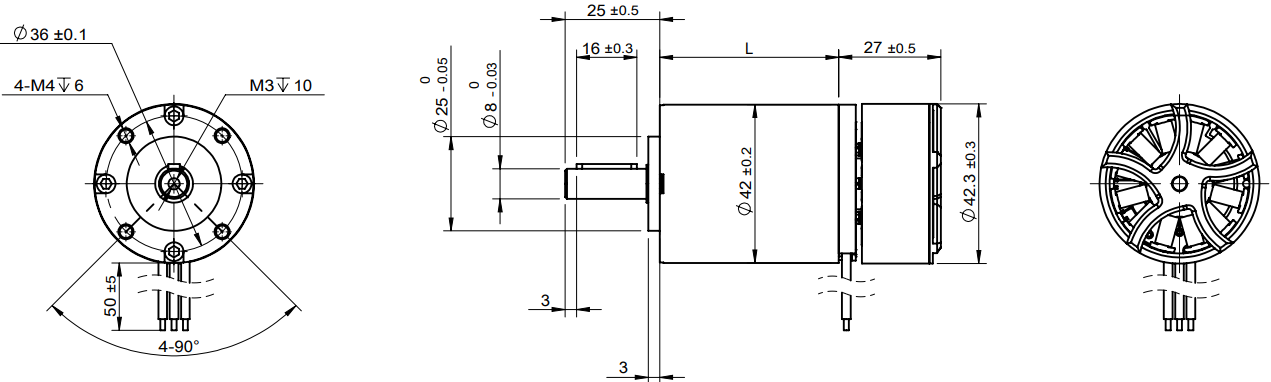

43mm 24V outerrotor brushless gear motor
incl. 19% VAT
43mm 24V outerrotor brushless gear motor
43mm 24V outerrotor brushless gear motor
Specification | BO43**—42MP—BO4326NBH2B03-92-24.0 |
---|---|
Voltage | 24.0 V |
Terminal resistance | 0.21 Ω |
No-load speed | 9200 rpm |
No-load current | 0.6 mA |
Stall torque | 2817 mNm |
Stall current | 114 mA |
Nominal torque | 194 mNm |
Nominal speed | 7000 rpm |
Nominal current | 7.2 mA |
Max. output power | 678 W |
Max. efficiency | 86 % |
Back-EMF constant | 2.60 mV/rpm |
Torque constant | 24.8 mNm/A |
Speed/torque gradient | 3.3 rpm/mNm |
Rotor inertia | 153 g·cm² |
Weight | 132 g |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
