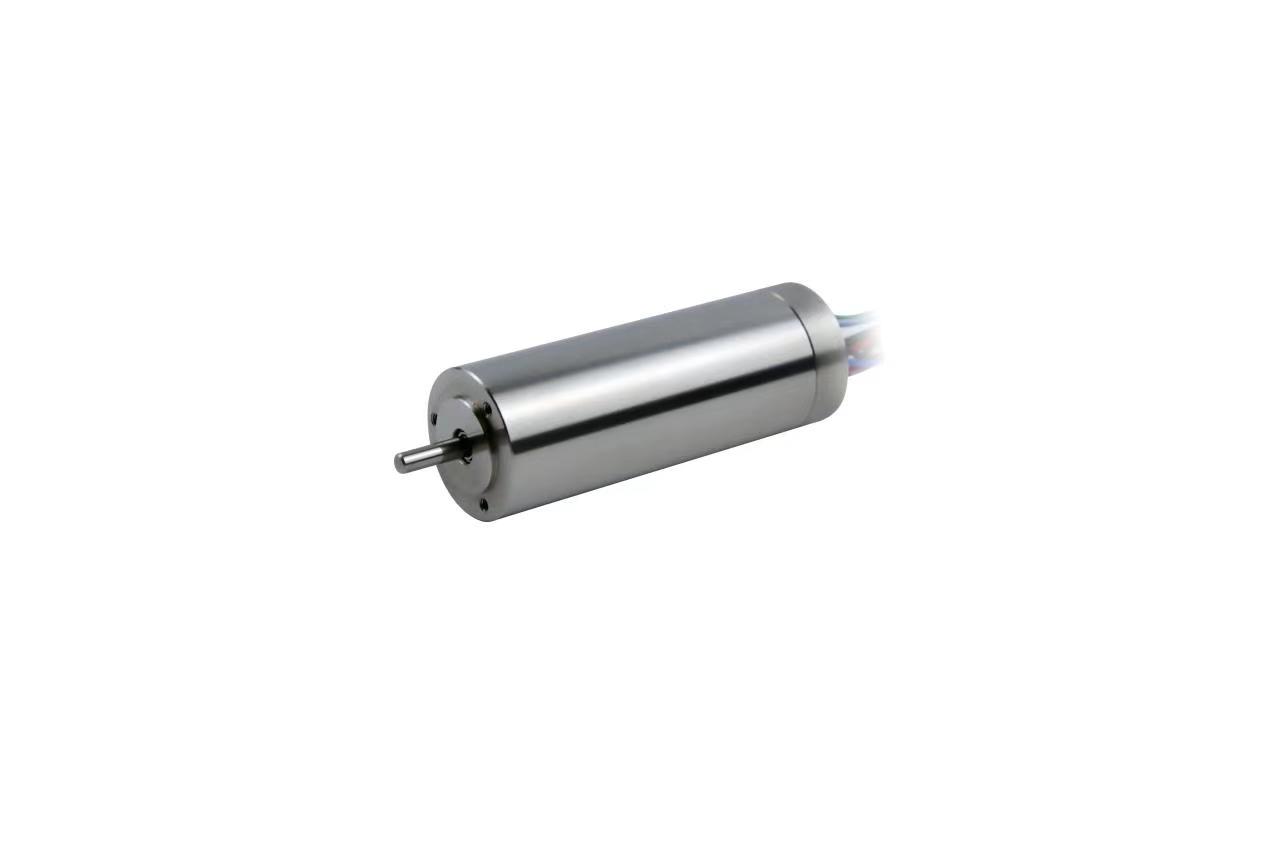

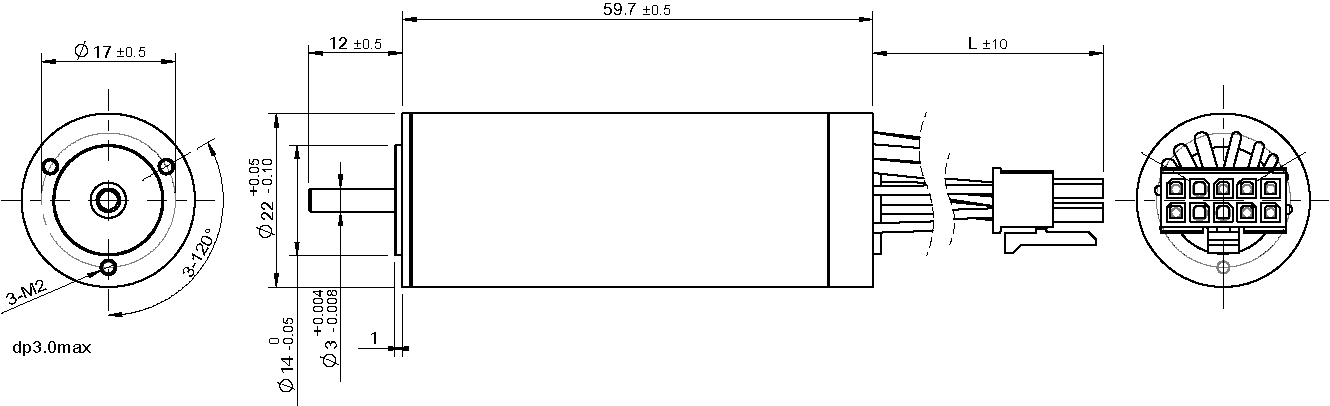

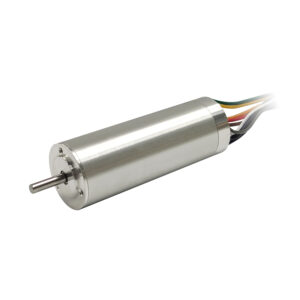

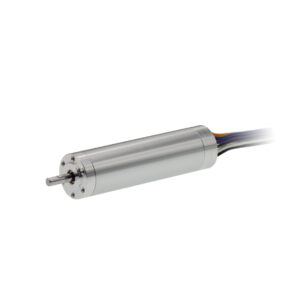

22mm BLDC, inner rotor, slotless, sensored, high efficiency
BH2260NH2B01-530-24.0-****
incl. 19% VAT
22mm BLDC, inner rotor, slotless, sensored, high efficiency
| Specification | BH2260NH2B01-530-24.0-**** |
|---|---|
| Voltage | 24.0 V |
| Terminal resistance | 0.15 Ω |
| No-load speed | 53000 rpm |
| No-load current | 0.38 A |
| Stall torque | 688.6 mNm |
| Stall current | 160.0 A |
| Nominal torque | 17.2 mNm |
| Nominal speed | 51680 rpm |
| Nominal current | 4.4 A |
| Max. output power | 956 W |
| Max. efficiency | 90.6 % |
| Back-EMF constant | 0.452 mV/rpm |
| Torque constant | 4.31 mNm/A |
| KV Value | 2210 rpm/V |
| Speed/torque gradient | 77 rpm/mNm |
| Rotor inertia | 2.53 gcm² |
| Weight | 107 g |
| Thermal resistance housing-ambient | 5.28 K/W |
| Thermal resistance winding-housing | 0.57 K/W |
| Thermal time constant motor | 900 s |
| Thermal time constant winding | 850 s |
| Operating temperature range | -40~+120 °C |
| Thermal class of winding | 155 °C |
| Axial play | 0.012 mm |
| Radial play | 0.008 mm |
| Axial load dynamic | 1.5 N |
| Axial load static | 60 N |
| Radial load at 3 mm from mounting face | 10 N |
| No. of pole pairs | 1 |
| Bearings | 2 ball bearings |
| Commutation | Hall Sensor |
| Protection class | 20 IP |
Applications
precision drives in medical equipment
industrial automation
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
