Description

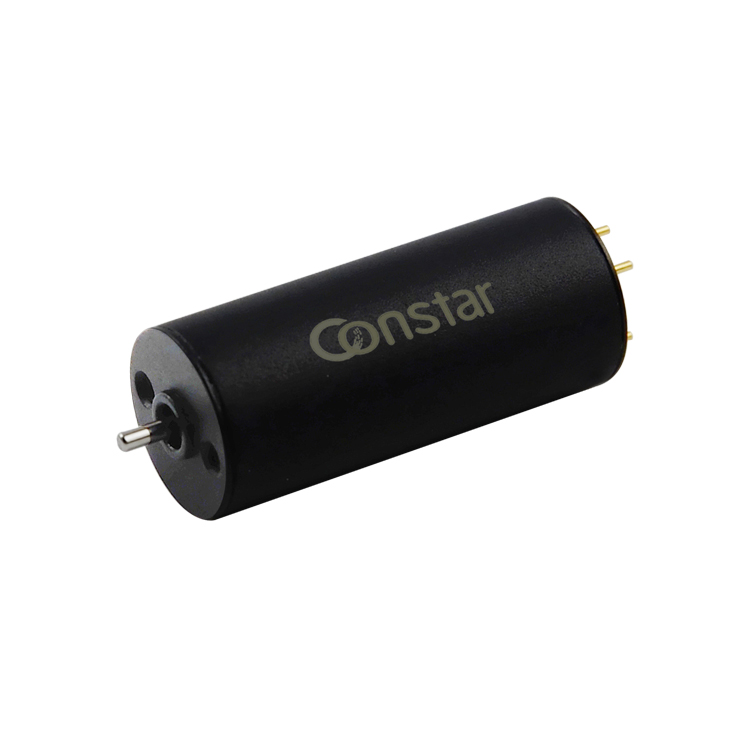

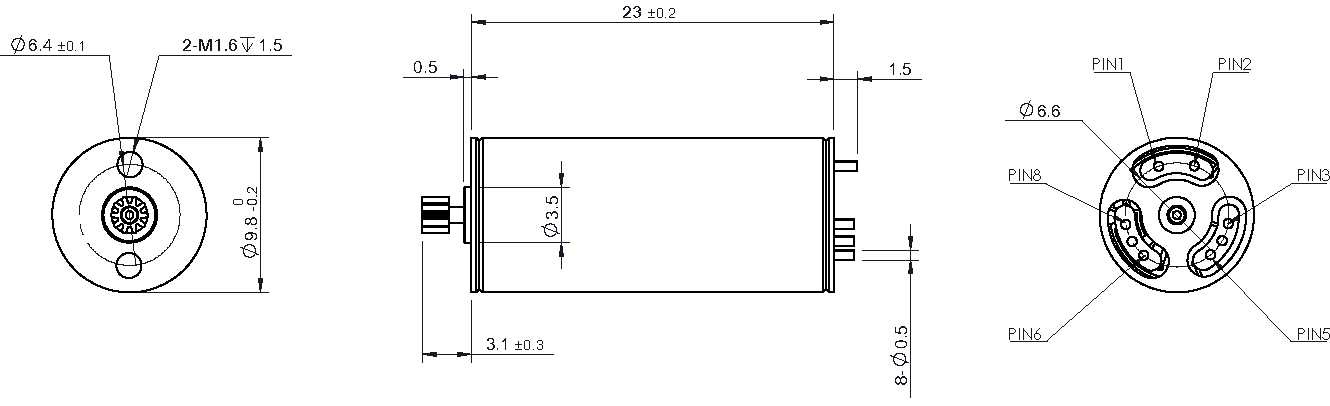

10mm BLDC, inner rotor, slotless, Hall Sensor
10mm BLDC, inner rotor, slotless, Hall Sensor
Specification | B1023NH2B03-85-3.7 |
---|---|
Voltage | 3.7 V |
Terminal resistance | 6.2 Ω |
No-load speed | 8500 rpm |
No-load current | 0.07 A |
Stall torque | 1.90 mNm |
Stall current | 1.0 A |
Nominal torque | 0.6 mNm |
Nominal speed | 6077 rpm |
Nominal current | 0.23 A |
Max. output power | 0.43 W |
Max. efficiency | 43 % |
Back-EMF constant | 0.38 mV/rpm |
Torque constant | 3.66 mNm/A |
KV Value | 2290 rpm/V |
Speed/torque gradient | 4473 rpm/mNm |
Rotor inertia | 0.06 gcm² |
Weight | 8.3 g |
Thermal resistance housing-ambient | 44 K/W |
Thermal resistance winding-housing | 10 K/W |
Thermal time constant motor | 124 s |
Thermal time constant winding | 119 s |
Operating temperature range | -40~+100 °C |
Thermal class of winding | 155 °C |
Axial play | 0.05 mm |
Radial play | 0.0125 mm |
Axial load dynamic | 1 N |
Axial load static | 25 N |
Radial load at 3 mm from mounting face | 6.3 N |
No. of pole pairs | 1 |
Bearings | 2 ball bearings |
Commutation | Hall Sensor |
Protection class | 20 IP |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
