Description

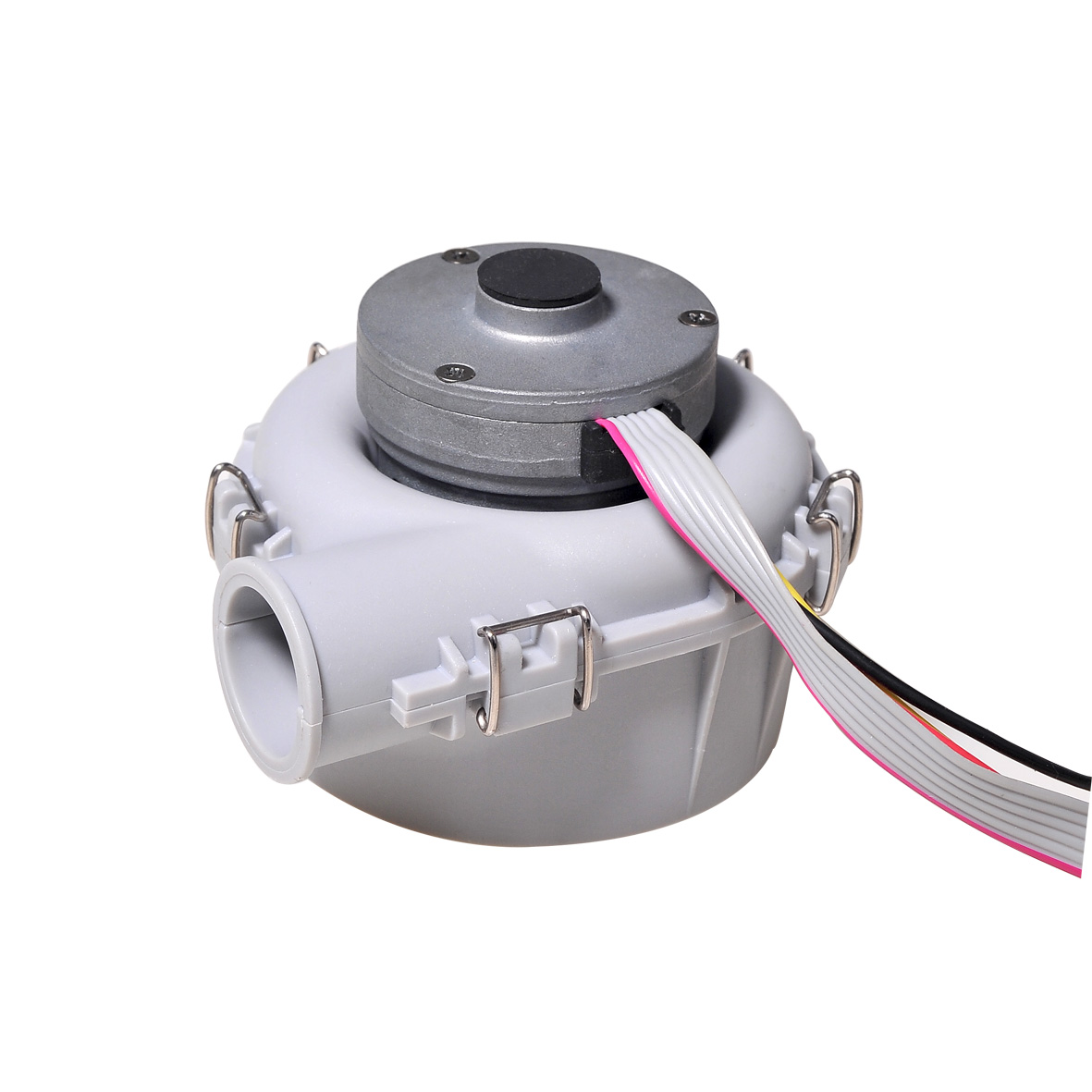

70mm 24V BLDC blower, Hall sensor
| Specification | 7054ZWF-2ZP-250A-24.0 |
|---|---|
| Voltage | 24.0 V |
| Terminal resistance | 2.0 Ω |
| NO. of phase | 3 |
| Input power | 20 W |
| Rated Load | Blades, blow hole: 4mm |
| Load speed | 33000 rpm |
| Load current | 1.4 A |
| Air pressure | 4000 Pa |
| Air flow | 3.6 m³/h |
| Noise | ≤40 dB |
| Weight | 237 g |
Applications
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
