B16**—16*P—

Name: B16**-16*P- KOCO automotive
SKU: B16**---16*P---

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

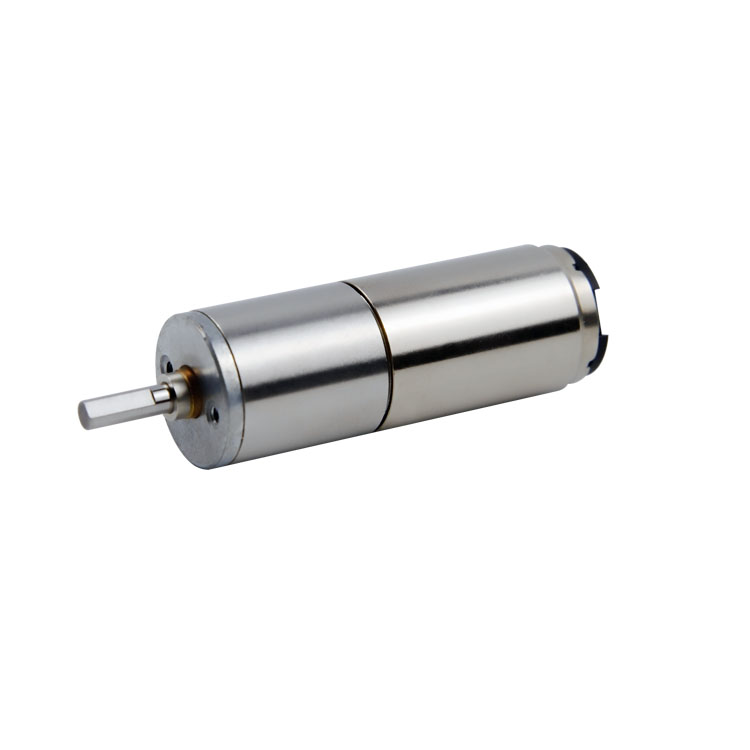

16mm planetary gearbox series

Artikelnummer: B16**—16*P— Kategorie: Planetary Gear

Beschreibung

Beschreibung

16mm planetary gearbox series

Motor Characteristics	B16*—16P—B1635N2B01-112-3.0
Voltage	3.0 V
Terminal resistance	0.35 Ω
No-load speed	11250 rpm
No-load current	100 mA
Stall torque	21.3 mNm
Stall current	8570 mA
Nominal torque	1.50 mNm
Nominal speed	10460 rpm
Nominal current	700 mA
Max. output power	6 W
Max. efficiency	80 %
Back-EMF constant	0.26 mV/rpm
Torque constant	2.52 mNm/A
Speed/torque gradient	530 rpm/mNm
Rotor inertia	1.5 g·cm²
Weight	40 g

Gearbox characteristics

B16**—16*P—

Gearbox stages

Reduction ratio

Max. rated torque

mNm

Max. momentary torque

240

mNm

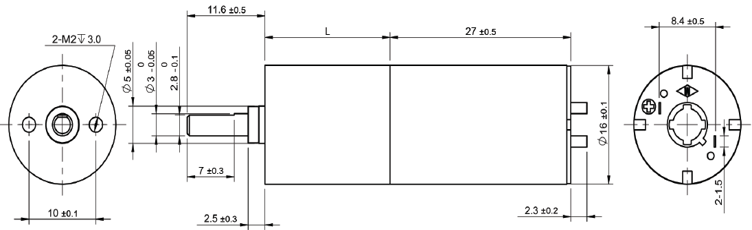

Length（L）

15.05

Gearbox stages

Reduction ratio

14~29

Max. rated torque

120

mNm

Max. momentary torque

360

mNm

Length（L）

18.7

Gearbox stages

Reduction ratio

35~157

Max. rated torque

160

mNm

Max. momentary torque

480

mNm

Length（L）

22.35

Gearbox stages

Reduction ratio

231~690

Max. rated torque

200

mNm

Max. momentary torque

600

mNm

Length（L）

Gearbox stages

Reduction ratio

1014~3027

Max. rated torque

240

mNm

Max. momentary torque

720

mNm

Length（L）

29.65

Optionen

None

Anwendungen

medical equipment scientific instruments industrial equipment

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
