Description

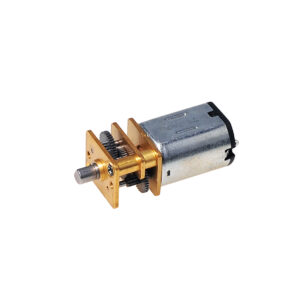

14mm 6V DC spur gear motor
14mm 6V DC spur gear motor

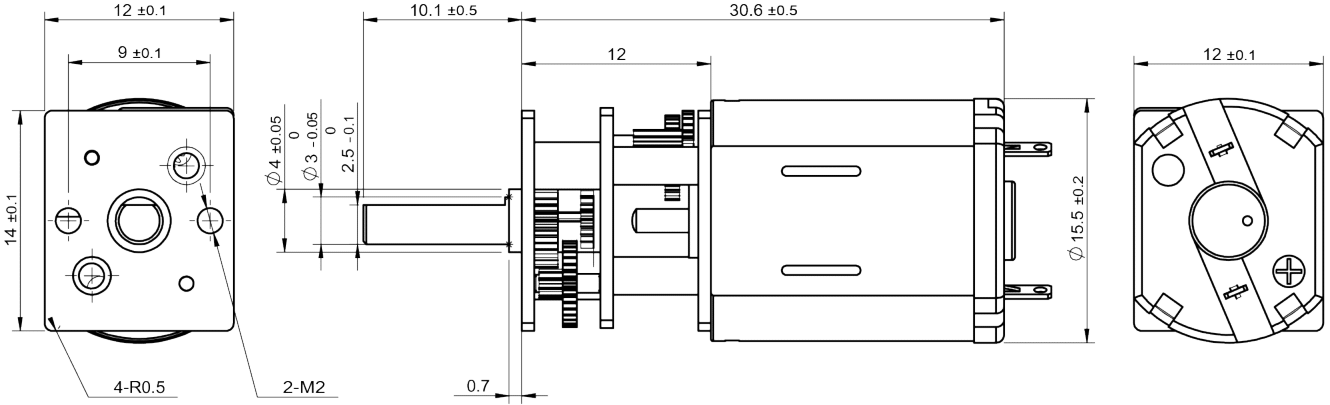

Specification | C1631—14MS—C1620F13-0032 |
---|---|
Voltage | 6.0 V |
Terminal resistance | 10.3 Ω |
No-load speed | 11700 rpm |
No-load current | 51 mA |
Stall torque | 2.36 mNm |
Stall current | 580 mA |
Nominal torque | 2.10 mNm |
Nominal speed | 1305 rpm |
Nominal current | 520 mA |
Max. output power | 0.73 W |
Max. efficiency | 50 % |
Back-EMF constant | 0.47 mV/rpm |
Torque constant | 4.47 mNm/A |
Speed/torque gradient | 4950 rpm/mNm |
Rotor inertia | 0.5 g·cm² |
Weight | 10.7 g |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
